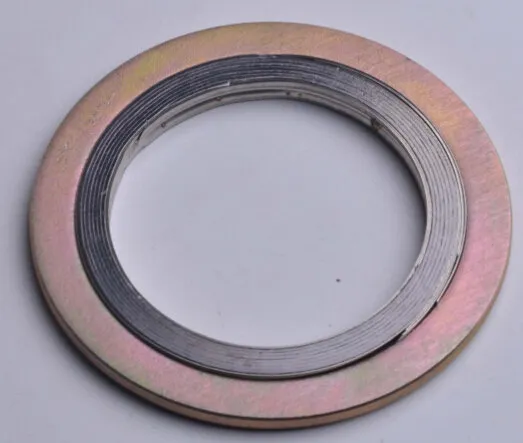

Metal spiral wound gasket with outer ring

Metal spiral wound gasket with outer ring

XINSEN-SC
  • The metal wound gasket (with outer ring) is composed of a basic type and an outer ring made of 304304L, 316316L, etc. The outer ring is used to strengthen pressure.

INQUIRY NOW
  • The metal spiral wound gasket (basic type) is made by using standard high-quality SUS304, SUS316 ("V" or "W" shaped) metal strips and other alloy materials to overlap and spiral wound with flexible materials such as graphite, asbestos, polytetrafluoroethylene, and asbestos free. The metal strips are fixed by spot welding at the beginning and end.

    Performance: High temperature, high pressure, corrosion resistance, with good compression and rebound rates.

    Applications: pipes, valves, pumps, manholes, pressure vessels, etc. at flange connections in petroleum, chemical, power, metallurgy, shipbuilding, papermaking, pharmaceuticals, etc

    The sealing part of the heat exchange equipment is an ideal static sealing material.

    Stainless steel strip shape: "V", "W", "SUS", "U".

    Stainless steel strip materials: A3, 304304L, 316316L, Alloy 825, Monel 400, Inconel 625, S32750, etc

    Non metallic tape (filler): special asbestos, asbestos free, flexible graphite, polytetrafluoroethylene, etc.

    Applicable temperature: -196 ℃ -+870 ℃ (flexible graphite)

    ≤+250 ℃ (polytetrafluoroethylene)

    ≤+500 ℃ (special asbestos)

    Medium: Suitable for high-temperature and high-pressure steam, oil, oil and gas, solvents, thermal coal oil, etc.

    Operating pressure: ≤ 300Mpa

    Maximum machining size: 2800 mm; Special specifications or various non-standard products can be produced according to your requirements.

    Minimum preload pressure: y=68 MPa



    Selection reference:

    Flange type

    Gasket type

    Winding

    Filler

    Ring material

    Size(mm)

    Thickness(mm)

    Name

    Abbr.

    V- shape

    W-shape

    FLAT FLANGE

    WITH OUTER RING ONLY

    304

    304(L)

    316(L)

    ASBESTOS

    ASB

    A3

    304

    304(L)

    316(L)

    Φ16-3000





    WITH INNER&OUTER RING





    RF FLANGE

    WITH OUTER RING ONLY

    FLEXBILE

    GRAPHITE

    FG





    WITH INNER&OUTER RING

    3.2

    4.8

    MF FLANGE

    BASIC

    PTFE

    PTFE

    4.5

    5.5

    WITH INNER RING ONLY



    7.5

    TG FLANGE

    BASIC







    WITH INNER RING ONLY





    FF&TG FLANGE

    BASIC







    WITH INNER RING ONLY
